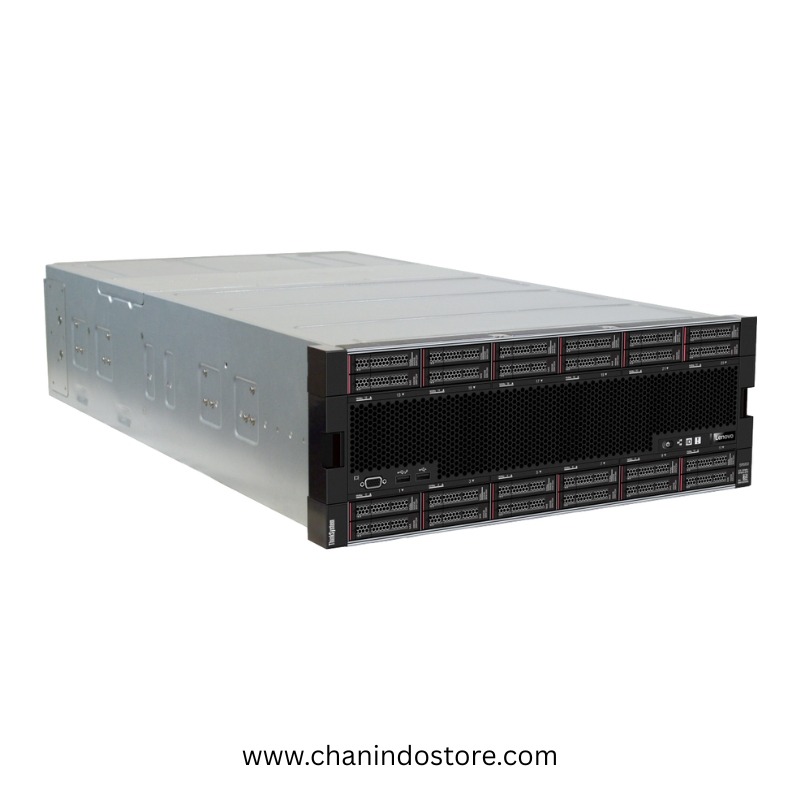

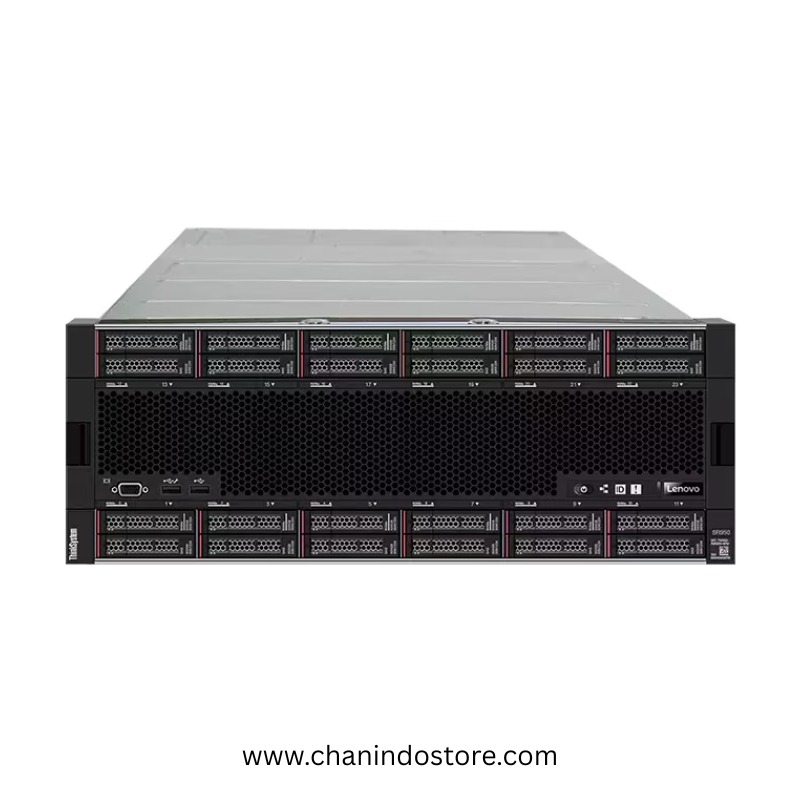

LENOVO ThinkSystem SR950 (4x Xeon 8260M, 16x64GB, 8x800GB)

Platform Quad                           CPU Rackmount Server
Chassis Form Factor                4U Rackmount Chassis
Processor Type                          Intel Xeon Processor
#1 Processor Onboard             Intel Xeon Platinum 8260M Processor (24 cores, 2.40 GHz, 35.75M Cache)
#2 Processor Onboard             Intel Xeon Platinum 8260M Processor (24 cores, 2.40 GHz, 35.75M Cache)
#3 Processor Onboard             Intel Xeon Platinum 8260M Processor (24 cores, 2.40 GHz, 35.75M Cache)
#4 Processor Onboard             Intel Xeon Platinum 8260M Processor (24 cores, 2.40 GHz, 35.75M Cache)
Standard Memory                     16x 64GB TruDDR4 2666MHz
#1 Hard Drive                            8x 800GB SAS 12Gb 2.5 Inch Hot Swap SSD
Power Supply Type                   4x 2000W
Standard Warranty                   3 Years Warranty

Others

• SR950 2S to 4S Basee
• 24 Hard Drive Maximum System
• 3x ThinkSystem 2.5″ SAS/SATA 2×2 Bay Backplane Kit
• Select Storage device – no configured RAID Required
• ThinkSystem RAID 930-16i 4GB Flash PCIe 12Gb Adapter
• ThinkSystem M.2 with Mirroring Enablement Kit
• 2 x ThinkSystem M.2 32GB SATA 6Gbps Non-hot swap SSD
• 2 x ThinkSystem SR950 (4) x8 PCIe Riser
• ThinkSystem Broadcom 5720 1GbE RJ45 2-Port PCIe Ethernet Adapter
• ThinkSystem Broadcom 57416 10GBASE-T 2-Port PCIe PCIe Adapter
• Qlogic 16Gb Enhanced Gen5 FC Dual-Port HBA
• 2x SFP+ SR Transceiver
• 4x 2.8m, 10A/100-250V, C13 to IEC 320-C20 Rack Power Cable
• SR950 Lift Handles
• Feature Enable TPM 1.2
• System Documentation
• 2x ThinkSystem SR950 2-CPU, 24 DIMM Compute System Board V2
• Short SAS Cable To Controller
• Long SAS Cable To Controller
• Middle SAS Cable To Controller
• Drive ID Label For SAS/SATA/SSD
• PHY Card Installation Bracket and Screw
• 32 x Lenovo ThinkSystem Memory Dummy
• 2 x8 PCIe Bay Filler
• Two Slot PCIe Riser BulkHead Filler
• 4x ThinkSystem 4R CPU HS Clip
• 4x CPU Heatsink for Highest Wattage CPUs
• 3x ThinkSystem 2×2 Quad Bay Gen4 2.5″ HDD Filler
• 4x ThinkSystem 1×1 2.5″ HDD Filler
• FBU345 SuperCap Cable for SR950
• FBU345 SuperCap
• ThinkSystem Response Time Service Label LI
• Upper HDD Bay Cage For 4S Storage Rich Config
• 9x SR950 19K RPM Chassis Fan Assembly
• SR950 Lenovo Bezel Label
• SR950 Labels
• SR950 WW Packaging
• Railkit
• Front Operator Panel with LCD Display
• SR950 Main I/O Planar V2
• Feature Enable TPM on MB
• Essential Service – 3Yr 24X7 4Hr Response + yourDrive Yourdata
