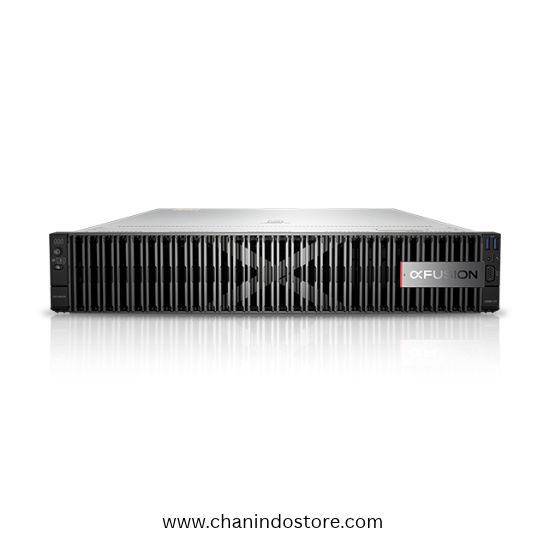

FUSIONSERVER 2488H V7 RACK SERVER

Form Factor： 2U rack server
Processors： 2 or 4 x 4th Gen Intel Xeon Scalable processors with TDP up to 350 W per processor
Chipset： Emmitsburg PCH
Memory： 64 x DDR5 DIMMs
Local Storage： Hot-swappable drives configurations: 8 x front 2.5 SAS/SATA drives 25 x front 2.5 SAS/SATA drives 4 x front 2.5 SAS/SATA drives and 8 x NVMe SSDs,
Flash storage: 2 x M.2 SSDs, supporting hardware RAID

Technical Specifications

Form Factor : 2U rack server

Processors : 2 or 4 x 4th Gen Intel Xeon Scalable processors with TDP up to 350 W per processor

Chipset : Emmitsburg PCH

Memory : 64 x DDR5 DIMMs

Local Storage : Hot-swappable drives configurations: 8 x front 2.5 SAS/SATA drives 25 x front 2.5 SAS/SATA drives 4 x front 2.5 SAS/SATA drives and 8 x NVMe SSDs, Flash storage: 2 x M.2 SSDs,

RAID : RAID 0, 1, 10, 1E, 5, 50, 6, or 60; supercapacitors for cache data protection from power failures; RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Network : Multiple network expansion capabilities, 1 x OCP 3.0 NIC, supporting hot swap
PCIe ExpansionUp to 10 x PCIe slots, including 1 x FlexIO slot dedicated for the OCP 3.0 NIC and 9 x standard PCIe slots
Fan Modules : 6 x hot-swappable counter-rotating fans in N+1 redundancy

PSU : 2 x hot-swappable Platinum/Titanium PSUs in 1+1 redundancy, 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC). 1500 W AC Platinum PSUs, 850 W (input: 100 V to 127 V AC), 1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC), 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC), 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC). 2000 W AC Platinum/Titanium PSUs, 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC), 2150 W Titanium PSUs (input: 230 V to 240 V AC, or 230 V to 288 V DC). 3000 W AC Titanium PSUs, 2500 W (input: 200 V to 220 V AC, or 192 V to 200 V DC), 2900 W (input: 220 V to 230 V AC, or 200 V to 230 V DC), 3000 W (input: 230 to 240 V AC, or 230 to 288 V DC)

Management : The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening. The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management user interface based on HTML5/VNC KVM; supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management. It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies, enabling intelligent, automatic, visualized, and refined management throughout the lifecycle.

OS : FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, Oracle, Ubuntu, and openEuler

Security : Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security panel, secure boot, and chassis cover opening detection

Certification : CE, UL, CCC, FCC, VCCI, and RoHS

Installation Suite : L-shaped guide rails, adjustable guide rails, and holding rails

Dimensions (H x W x D) : Chassis with 2.5 drives: 86.1 mm x 447 mm x 898 mm (3.39 in. x 17.60 in. x 35.35 in.)
