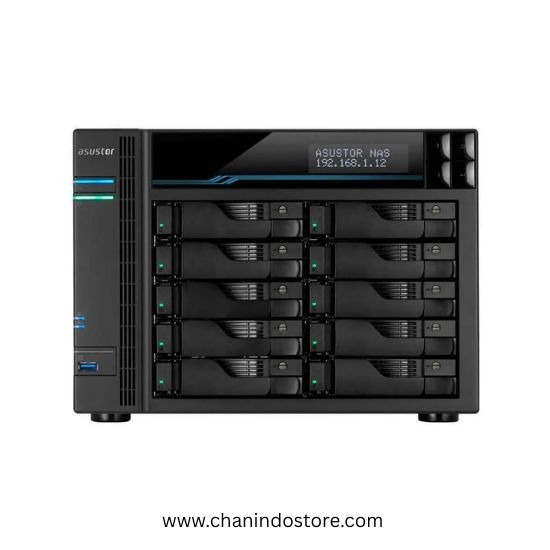

Asustor AS7110T LOCKERSTOR 10 PRO 10-Bay NAS Storage Cloud

LOCKERSTOR 10 PRO
AS7110T
Full Xeon Speed Ahead!
Extremely efficient and stable – Your next enterprise virtualization and storage solution

• Intel Xeon 9th generation Quad-Core CPU
• 8GB of server-grade DDR4-2666 ECC memory (Max 64GB, 32GB x 2)
• Dual M.2 NVMe SSD ports for fast caching
• Complete iSCSI/IP-SAN and NFS support. VMware, Citrix and Hyper-V ready. Supports virtualization and Docker apps
• Brings the smoothest work experience with 10-Gigabit Ethernet, triple 2.5-Gigabit ports and USB 3.2 Gen2 ports.
• Supports Wake on LAN (2.5-Gigabit ports )

Hardware Specifications
CPU
CPU Model: Intel Xeon E-2224
CPU Architecture: x64 64-bit
CPU Frequency: Quad-Core 3.4GHz up to 4.6GHz
Memory
Memory: 8GB DDR4 ECC SO-DIMM
Memory Module Pre-installed: 8GB (1x 8GB)
Total Memory Slots: 2
Memory Expandable up to: 64GB (2x 32GB)
Support mixed capacity
Flash Memory: 8GB USB DOM
Storage
Drive Bays: 10
M.2 Drive Slots: 2
Compatible Drive Type
3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
M.2 2280 NVMe
M.2 2280 SATA 3
M.2 2260 SATA 3
M.2 2242 SATA 3
Maximum Drive Bays with Expansion Unit: 22
External Ports
Expansion: 1x Front USB 3.2 Gen 1, 2x Rear USB 3.2 Gen 2 (10Gbps)
Network: 1x 10 Gigabit Ethernet (10G/5G/2.5G/1G/100M); 3x 2.5 Gigabit Ethernet (2.5G/1G/100M)
HDMI Output: N/A
Others
System Fan: 2x 120mm
LCD Panel: Yes
Power Supply Unit / Adapter: 350W x1
Input Power Voltage: 100V to 240V AC
Warranty: 5 Years
Operation
Power Consumption: 78.7W (Operation); 40.1W (Disk Hibernation); 5.8 W (Sleep Mode)
Noise Level: 22dB (HDD idle)

Package Contents
LOCKERSTOR 10 Pro (AS7110T) Unit x1
Quick Installation Guide
AC Power Cord x1
RJ-45 LAN Cable(Cat 5e) x3
10GBE LAN Cable(Cat 6a) x1
Flat Head Screw (for 3.5″ HDD) x40
Flat Head Screw (for 2.5″ HDD) x40
M.2 thumbscrews x2

*BELUM TERMASUK HARDDISK
