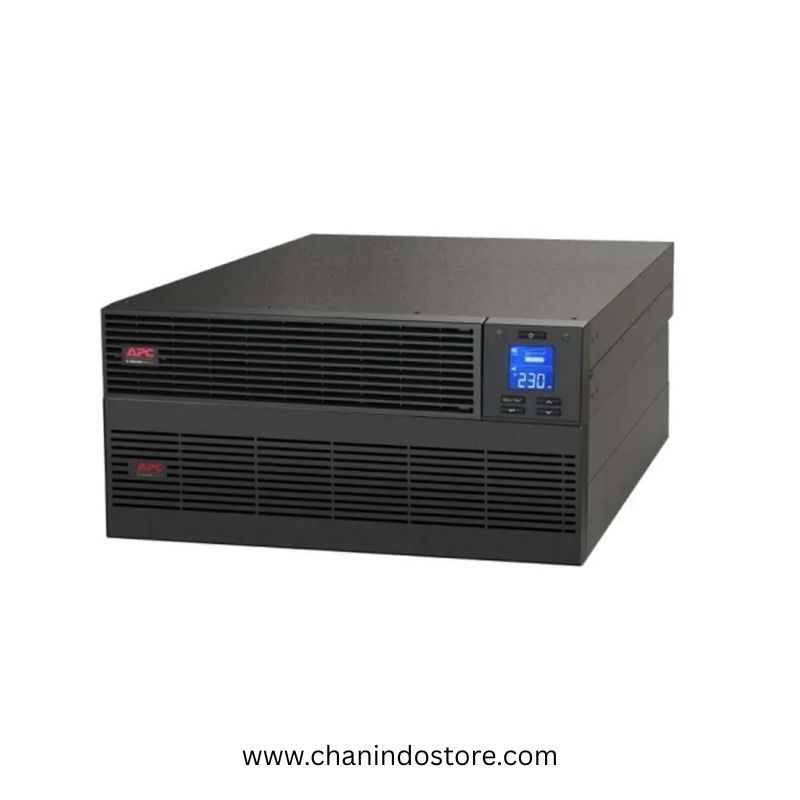

UPS APC SRV6KRILRK Easy UPS SRV 6000VA 6KVA RM 230V

APC Easy UPS On-Line SRV 6000VA RM 230V with Extended Runtime Battery Pack, Rail Kit
Contents :

– SRVPM6KRIL
– SRV240RLBP-9A
– SRVRK1
– SRVRK2

Features & Benefits :
– Automatic internal bypass
– Automatic restart of loads after UPS shutdown
– ECO Mode
– Input power factor correction
– Intelligent SmartSlot
– Serial connectivity
– USB connectivity
– Network manageable (option)
– Double conversion on-line topology
– Power conditioning
– Pure sinewave
– Management Software
– Resettable circuit breaker
– Generator Compatible
– 2-Year standard warranty

General :
– Part Number : SRV6KRILRK
– Model : Easy UPS On-Line
– Application : Network and Server

Technical Specifications :
– Max Configurable Power (Watts) : 6000 Watts / 6000VA
– Output Frequency (sync to mains) : 50/60 Hz +/- 3 Hz Sync to mains (AC Mode)
– Output Connections : Terminal block (1phase)
– Output Voltage Distortion : 1%
– Nominal Output Voltage : 230V
– Other Programmable Voltage : 220V, 240V
– Transfer Time : 0ms
– Topology : Double conversion online
– Waveform type : Sine wave
– Input frequency : 40 – 70 Hz
– Input voltage range for main operations : 110 – 300 V at Half load, 176 – 300 V at full load
– Input Connection : Terminal block (1phase)
– Typical recharge time : 9hour(s)
– Battery type : Sealed maintenance free (SMF) 12 V, 9 Ah
– Battery Bank Voltage : 240 V
– Control panel : Multifunction LCD status and control console
– Interface Port(s) : DB-9 RS-232, Smart-Slot, USB
– Physical Maximum (Height x Width x Depth) : 220 mm x 438 mm x 615 mm
– Physical Shipping (Height x Width x Depth) : 490 mm x 600 mm x 870 mm
– Physical Net Weight : 78.0KG
– Physical Shipping Weight : 88.0KG
– Operating Temperature : 0 – 40 °C
– Audible noise at 1 meter from surface of unit : 55.0dBA
– Approvals : CE, EAC, EN/IEC 62040-1, EN/IEC 62040-2, TISI
