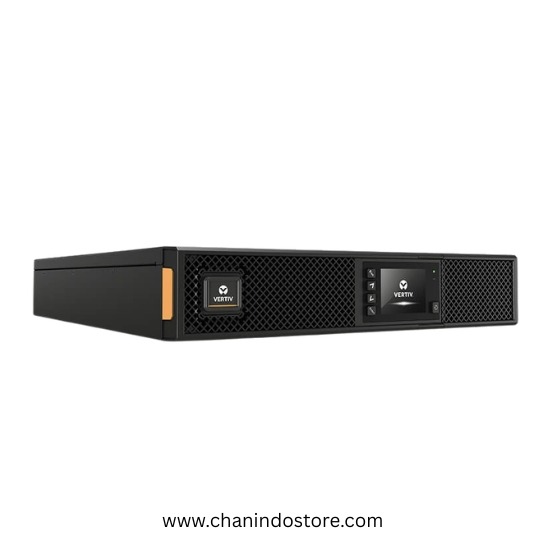

UPS 3000VA UPS 3KVA Liebert Vertiv GXT5 On-Line 3000VA/3000W 1202005

UPS Liebert GXT5 On-Line 3000VA/3000W Sangat Cocok Digunakan Untuk: 1. Edge applications 2. Network workstations 3. Web and application servers 4. Network closets 5. Large network peripherals 6. VoIP Fitur Utama 1. Available in 750 VA/1/1.5/2/3 kVA ratings 2. Top-level on-line double conversion UPS for mission-critical applications 3. Unity output power factor 4. LCD multi-language color display (gravity sensing) 5. On-line (VFI) mode efficiency up to 94% at full load 6. Active ECO mode efficiency up to 98% 7. Energy Star 2.0 certified 8. Controllable and programmable output sockets 9. Integrated solution with batteries and electronics 10. External battery cabinets auto-detection 11. Operates at full power up to 40 ºC (up to 50 ºC with derating) 12. Intelligent Communication ready 13. Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability) Dimensions and Weight Dimensions (mm) Unit, 540×430×85, Unit Weight (kg) 28.5 Input : Rated Volatge : 230 VAC Rated Frequency : 50 Hz / 60 Hz Frequency Range : 40 to 70 Hz Power Factor : ≥0.99 Output : Nominal Voltage : 200/208/220/230/240 VAC Waveform : Sine wave Inverter Overload Capability : gt;200% minimum 250 ms; 150 to 200% for 2 seconds; 105 to 150% for 55 seconds Efficiency in Online Mode : Up to 94% Inverter Bypass : Up to 98% Output Receptacles : (6) EN60320/C13; (1) EN60320/C19 Internal Battery : Rated Voltage : 72 Vdc Charger Current : Nominal 2.2 A; Maximum 8 A Type : Valve-regulated, non-spillable, lead acid Qty x V x Rating : 6 x 12 V x 9.0 Ah End Cell Voltage : 1.67 V/cell (discharge voltage per cell will be from 1.67 Vdc to 1.90 Vdc, canbe selected by PARAMSET) Floating Voltage : Equalize charge: 2.35 V/cell; Float charge: 2.27 V/cell Battery Voltage Range : 60 Vdc to 84.6 Vdc
