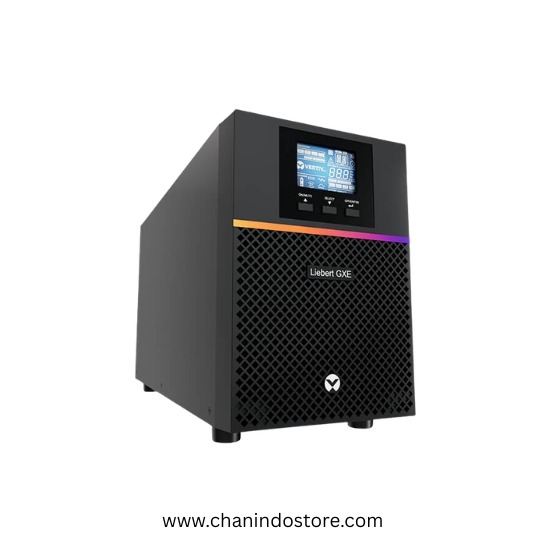

UPS 1000VA UPS 1KVA Vertiv 1000VA/900W On-line Liebert GXE3-1000IMT Vertiv

Technical Specifications :
– Model Number : GXE3-1000IMT
– Power Rating (VA/W) : 1000VA / 900W
– Form Factor : Tower

Dimensions, mm
– Dimensions, mm Unit (W x D x H) : 160 x 315 x 245
– Dimensions, mm Shipping (W x D x H) : 235 x 395 x 325

Weight, kg
– Weight, kg Unit : 11.8
– Weight, kg Shipping : 12.5

Input AC Parameters
– Voltage Range Without Battery Operation (230V default, derating applies)• : 110 – 290
– Voltage Range Without Battery Operation (230V default, 100% load) : 180 – 290
– Frequency Range (Hz, autosensing) : 40 – 70
– Input Power Connector : IEC60320 C14
– Surge Protection (J) : 600

Output AC Parameters
– Output Voltage : 220/230 (default) /240
– Waveform : Pure Sine Wave
– Output Overload (AC Mode) : 105% – 110% @ 10 min, 111% – 130% @ 30 sec, 131 – 150% @ 2 sec, > 150% @ inmediate
– Output Receptacles : 8 x IEC60320 C13
– Efficiency (online mode, max.) : 89%
– Efficiency (ECO mode, max.) : 95%

Battery
– Battery Type : Valve-regulated, non-spillable, lead-acid
– Recharge Time (internal batteries, typical) : – Backup Time (100% load, minutes) : 3.1
– Backup Time (50% load, minutes) : 9
– Compatible with External Battery Cabinets : No

Environmental
– Operating Temperature (ºC) : 0 to 40ºC
– Storage Temperature (ºC, without battery inside) : -20ºC to +50ºC
– Relative Humidity (operation, non-condensing) : 5% to 95%
– Operating Altitude (m), without derating () : 2000
– Audible Noise (line mode) :
Agency
– Compliance : CE, CB Report, UKCA, Morocco, RCM
– Safety : IEC/EN 62040-1
– Surge Immunity : EN 61000-4-5
– Transportation : ISTA 2A
– Environmental : RoHS, REACH, WEEE

Communications and Management
– Slot for optional cards : Yes
– Communication port : USB
– Emergency Power Off (EPO) : Yes

Warranty
– Warranty (electronics and batteries) : 2 years
