Datacenter Infrastructure, SUPERMICRO SERIES

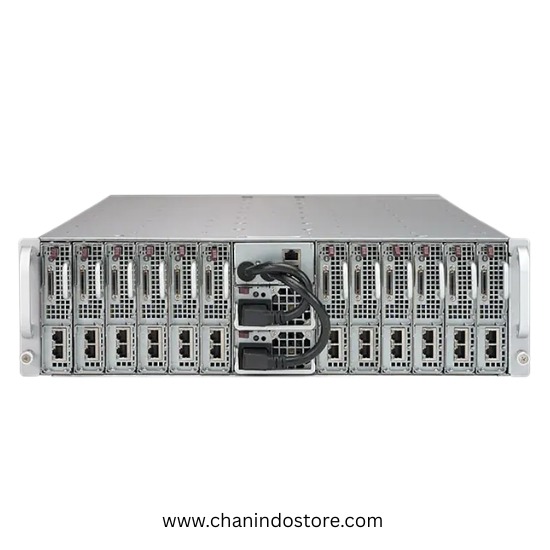

SUPERMICRO MICROCLOUD SUPERSERVER SYS-530MT-H12TRF (BAREBONE ONLY)

4 DIMM slots Max Memory (2DPC)
AMI 128MB SPI Flash EEPROM
LGA-1200 (Socket H5)
Up to 128GB 3200MT/s ECC DDR4 UDIMM
SATA (6Gbps) via Intel C256; RAID 0/1/5/10 support

Rp256.353.500

Description
Specification

Brand： Supermicro
Products Status： New
Form Factor： 3U
Motherboard： Super X12STE-F
Socket： LGA-1200 (Socket H5)

Technical Specifications

Brand : Supermicro
Products Status : New
Form Factor : 3U
Motherboard : Super X12STE-F
Socket : LGA-1200 (Socket H5)
Memory : Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
SATA : SATA (6Gbps) via Intel C256; RAID 0/1/5/10 support
LAN : 2 RJ45 1 GbE LAN ports (Intel I350)
USB : 2 USB 2.0 ports 1 Type-C port(front)
BIOS Type : AMI 128MB SPI Flash EEPROM
Expansion slots : 1 PCIe 4.0 x8 MicroLP slot
Dimension (WxHxL) : 76 x 40 x 336 mm

Categories: Datacenter Infrastructure, SUPERMICRO SERIES
