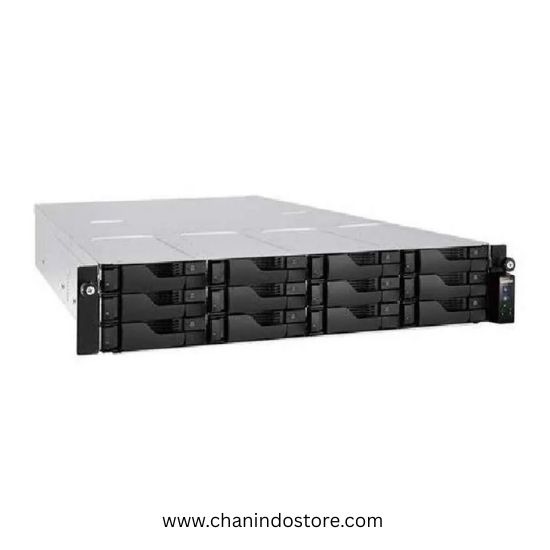

Asustor AS7112RDX LOCKERSTOR 12R PRO 12-Bay NAS Storage Cloud

Asustor LOCKERSTOR 12R PRO
AS7112RDX
Reliable, scalable and massive enterprise virtualization and storage solution.

• Intel Xeon 9th generation Quad-Core CPU
• Server-grade ECC memory: 8 GB ECC DDR4-2666 (Max 128GB, 32GB x 4)
• 2U chassis design, 12 SATA drive bays
• Dual M.2 NVMe SSD ports for fast caching
• Complete iSCSI/IP-SAN and NFS support. VMware, Citrix and Hyper-V ready.
• Supports Virtualization and Docker apps
• PCIe slots for 10/25/40/50 Gigabit Ethernet cards as well as SAS cards.
• Windows ACL support combined with Windows AD infrastructure enhances management efficiency for business applications

Hardware Specifications
CPU
CPU Model: Intel Xeon E-2224
CPU Architecture: x64 64-bit
CPU Frequency: Quad-Core 3.4GHz up to 4.6GHz
Memory
Memory: 8GB DDR4 ECC UDIMM
Memory Module Pre-installed: 8GB (1x 8GB)
Total Memory Slots: 4
Memory Expandable up to: 128GB (4x 32GB)
Support mixed capacity
Flash Memory: 8GB USB DOM
Storage
Drive Bays: 12
M.2 Drive Slots: 2
Compatible Drive Type
3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
M.2 22110 NVMe
M.2 2280 NVMe
M.2 2280 SATA 3
M.2 2260 SATA 3
M.2 2242 SATA 3
Maximum Drive Bays with Expansion Unit: 20
External Ports
Expansion: 4x USB 3.2 Gen 2 (10Gbps) Type-A ; 2x USB 3.2 Gen 2 (10Gbps) Type-C
Network: 4x Gigabit Ethernet (1G/100M)
PCIe Expansion Slots: 2x Gen3x4 slots (x4 link) ; 1x Gen3x8 slots (x8 link)
for optional 10/25/40/50 GbE card and SAS card
HDMI Output: N/A
Others
System Fan: 3x 60mm
Power Supply Unit / Adapter: 550W x2
Input Power Voltage: 100V to 240V AC
Redundant power supply: Yes
Service LED Indicator: Yes
Warranty: 5 Years
Operation
Power Consumption: 92.4W (Operation); 45.5W (Disk Hibernation) 7.55 W (Sleep Mode);
Noise Level: N/A

Package Contents
AS7112RDX Unit x1
Quick Installation Guide
AC Power Cord x2
RJ-45 LAN Cable(Cat 5e) x4
Flat Head Screw (for 3.5″ HDD) x48
Flat Head Screw (for 3.5″ HDD) x48
