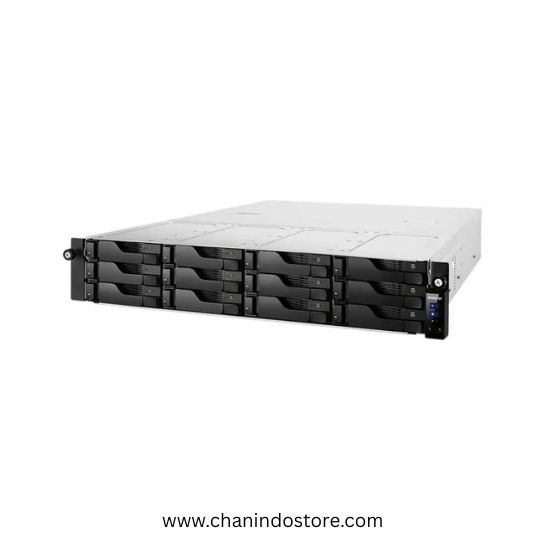

Asustor AS6512RD+RAIL LOCKERSTOR 12RD 12-Bay NAS Storage Cloud

LOCKERSTOR 12RD
AS6512RD
For small and medium businesses
• Intel Atom C3538 2.1GHz Quad-Core CPU
• 8 GB DDR4-2133 – 128 GB maximum
• Two Gigabit Ethernet and two 2.5-Gigabit Ethernet ports. Can provide up to 5 gbps when aggregated.
• Supports Wake-on-LAN and Wake-on-WAN
• Complete iSCSI/IP-SAN and NFS support – Supports VMware, Citrix and Hyper-V – Supports virtual machines and Docker applications
• Supports ACL and AD. Improves business application efficiency.
• PCIe slot for 10-Gigabit Ethernet card

Hardware Specifications
CPU
CPU Model: Intel ATOM C3538
CPU Architecture: x64 64-bit
CPU Frequency: Quad-Core 2.1GHz
Memory
Memory: 8GB SO-DIMM DDR4
Memory Module Pre-installed: 8GB (1x 8GB)
Total Memory Slots: 4
Memory Expandable up to: 128GB (4x 32GB)
Support mixed capacity
Flash Memory: 8GB eMMC
Storage
Drive Bays: 12
Compatible Drive Type
3.5″ SATA HDD
2.5″ SATA HDD
2.5″ SATA SSD
Maximum Drive Bays with Expansion Unit: 24
External Ports
Expansion: 4x USB 3.2 Gen 1
Network: 2x Gigabit Ethernet (1G/100M) ; 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
PCIe Expansion Slots: PCIe 3.0 x8 slot (black, x4 link)
HDMI Output: N/A
Others
System Fan: 2x 60mm
LCD Panel:Yes
Power Supply Unit / Adapter: 350W x2
Input Power Voltage: 100V to 240V AC
Redundant power supply: Yes
Service LED Indicator: Yes
Warranty: 3 Years
Operation
Power Consumption: 115W (Operation), 67W (Disk Hibernation)
Noise Level: –

Package Contents
AS6512RD Unit x1
Quick Installation Guide
AC Power Cord x2
RJ-45 LAN Cable(Cat 5e) x2
Flat Head Screw (for 3.5″ HDD) x48
Flat Head Screw (for 2.5″ HDD) x48

*BELUM TERMASUK HARDDISK
